Wind Ventilators

Wind Ventilators
Wind Ventilators
Product Code : 08
Brand Name : MUKTA ENGINEERS
Product Description

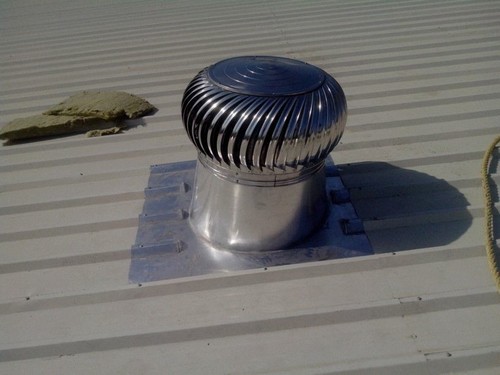

Wind Ventilator

With our wind ventilator, you can now achieve year round, effective ventilation that will not just be economical but natural as well. This product is helpful in bettering the working conditions without any operating cost or power consumption. This energy saver also helps in increasing productivity and making a better tomorrow.

As per the market demand and requirement of our leading patrons, we are offering the range of Wind Ventilators. Our products are highly appreciated due to its high durability, excellent performance and cost-effectiveness. The offered range is made by using the advanced technology, machines and tools, under the directions of our skilled professionals. Furthermore, we are offering the range of Wind Ventilators at pocket-friendly budget.

Wind Ventilator Working / Process

The wind ventilator, also known as turbine ventilator, uses the wind energy (velocity) for inducing the air flow vi the application of centrifugal force. The latter force is produced by the spinning vanes, as it develops an area of low pressure that exists the air via turbine. As a continuous process, this drawn out air is replaced with the outer fresh air.  The turbine spins even in light wind. In case there is no wind, stored energy in rotor cage is used by the fly wheel for persistently removing air, which results in ventilation. In other words, suction process is ensured even in less velocities of wind.

Major Key Features

  • Bottom ring and top plate are made using stainless steel
  • Aluminum vanes are rigidly constructed in curved shapes using roll forming process
  • Sealed ZZ bearings are provided which are permanently lubricated
  • Design it rust free, hence zero maintenance is required. Also, the design is spider like and rain proof
  • Material of constructions are stainless steel or aluminum. Both wind ventilators are available with us having 10 years of performance warranty.

Major Advantages

  • Since it runs on wind energy, there is no operating cost associated with it
  • 24 x 7 ventilation is assured and can be installed on all types of roofing profiles
  • 80% depreciation under section 32 of IT act.
  • Helpful in bettering the human comfort level as well as productivity
  • Delivers fresh air to replace humidity, smoke, hot air, stale air and gas fumes



Technical Specification :
Recommended Air Changes :

Type of Building

Air Changes / Hour

Type of Building

Air Changes /Hour

Assembly Hall

6-12

Chemical Plant

30-60

Auditorium

4-12

Laundry

12-30

Bakeries

12-20

Paper Mill

08-30

Boiler Room

15-60

Textile Mill

08-15

Brewery

8-30

Packing Room

08-30

Class Room

10-15

Transformer Room

12-30

Engine Room

12-30

Paint Shop

20-30

Factories (Light)

10-20

Ware House

05-08

Factories (Heavy)

20-40

Foundry

10-30

Ventilator Performance Data :

Wind Velocity

8Km/Hr

Model

Ventilator Size

Height

Exhaust Capacity

MUKTA ENGINEERS 24

24 inches

20 Ft

1972 CFM

30 Ft

2076 CFM

40 Ft

2164 CFM

To Determine Number of Ventilators Required:

{(Volume of shed X No. Of Air Changes) / 60} / Exhaust Capacity of Ventilator. Volume of Shed = Length X Width X Height

Conversions:

  • 1 Ft = 0.3048 Mtrs
  • 1 Mtrs = 3.2808 Ft
  • 1CFT = 0.028317 CUM
  • 1 CUM = 35.315 CFT

MUKTA ENGINEERS 24 WIND VENTILATOR

MOC of Vanes

Industrial HI grade Aluminium (HINDALCO MAKE H-14 8011 GRADE)

MOC of Top Plate

SS 304 (o.5mm) (AERODYNAMICAL)

MOC Bottom of Ring

SS 304 (0.5mm)

Weight of Ventilator

06 Kg.

Height of Ventilator

410mm + 5 mm

Center Width of Ventilator

735mm + 5 mm

Dia of Top Plate

500mm + 5 mm

Dia of Bottom Ring

600mm + 15 mm

Nos of Vanes

42 Nos Rolled Formed with lock washer

Thickness of Vanes

0.5mm

Nos of Bearing

02 Nos

Bearing Type

SKF - 6001 ZZ
Permanently Lubricated & Sealed

Rivets

Aluminum Alloy with LOCK Washer

We are providing double fan
Slope Adjustable Mukta Engineers 24 Wind Ventilator

MOC of Vanes

Industrial HI grade Aluminium (HINDALCO MAKE H-14 8011 GRADE)

MOC of Top Plate

SS 304 (o.5mm) (AERODYNAMICAL)

MOC Bottom of Ring

SS 304 (0.5mm)

ANGLE ADJUSTMENT RANGE

0 TO 17 DEGREE.

Weight of Ventilator

06 Kg.

Height of Ventilator

410mm + 5 mm

Center Width of Ventilator

735mm + 5 mm

Dia of Top Plate

500mm + 5 mm

Dia of Bottom Ring

600mm + 15 mm

Nos of Vanes

42 Nos Rolled Formed WITH LOCK WASHER

Thickness of Vanes

0.5mm

Nos of Bearing

02 Nos

Bearing Type

SKF - 6001 ZZ
Permanently Lubricated & Sealed

Rivets

Aluminum Alloy with LOCK Washer

Mukta Engineers 24 SS304 Wind Ventilator

MOC of Vanes

SS304

MOC of Top Plate

SS 304 (o.5mm)

MOC Bottom of Ring

SS 304 (0.5mm)

Weight of Ventilator

08 Kg.

Height of Ventilator

410mm + 5 mm

Center Width of Ventilator

735mm + 5 mm

Dia of Top Plate

500mm + 5 mm

Dia of Bottom Ring

600mm + 15 mm

Nos of Vanes

42 Nos Rolled Formed WITH LOCK WASHER

Thickness of Vanes

0.5 MM

Nos of Bearing

02 Nos

Bearing Type

SKF - 6001 ZZ Permanently Lubricated & Sealed

Rivets & SHAFT

SS 304
