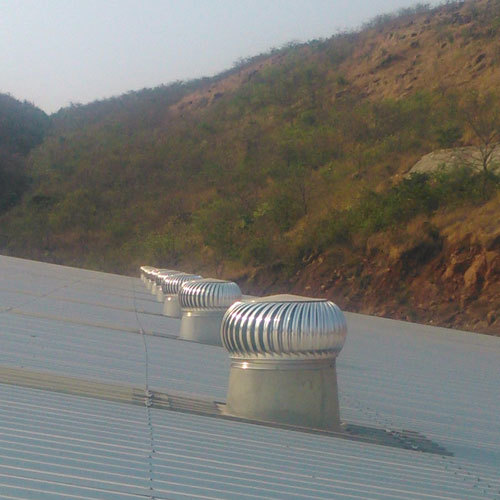

Turbo Ventilators

Turbo Ventilators
Turbo Ventilators
Product Code : 10
Brand Name : MUKTA ENGINEERS
Product Description
Our company is located in Kalyan, Maharashtra, India, offering an exclusive range of Turbo Ventilators, which is acknowledged for its inherent nature, to draw heat out of roof by utilizing the natural force of wind. The offered ventilator is developed under the supervision of our team of well-experienced professionals, by using the top grade quality components and modern techniques, as per the industry norms. Furthermore, we are offering the range of Turbo Ventilators at an affordable rate.

Features:
  • Easy to fit
  • High strength
  • Reasonable rate
  • Rugged design

Technical Specification :
Recommended Air Changes :

Type of Building

Air Changes / Hour

Type of Building

Air Changes /Hour

Assembly Hall

6-12

Chemical Plant

30-60

Auditorium

4-12

Laundry

12-30

Bakeries

12-20

Paper Mill

08-30

Boiler Room

15-60

Textile Mill

08-15

Brewery

8-30

Packing Room

08-30

Class Room

10-15

Transformer Room

12-30

Engine Room

12-30

Paint Shop

20-30

Factories (Light)

10-20

Ware House

05-08

Factories (Heavy)

20-40

Foundry

10-30

Ventilator Performance Data :

Wind Velocity

8Km/Hr

Model

Ventilator Size

Height

Exhaust Capacity

MUKTA ENGINEERS 24

24 inches

20 Ft

1972 CFM

30 Ft

2076 CFM

40 Ft

2164 CFM

To Determine Number of Ventilators Required:

{(Volume of shed X No. Of Air Changes) / 60} / Exhaust Capacity of Ventilator. Volume of Shed = Length X Width X Height

Conversions:

  • 1 Ft = 0.3048 Mtrs
  • 1 Mtrs = 3.2808 Ft
  • 1CFT = 0.028317 CUM
  • 1 CUM = 35.315 CFT

MUKTA ENGINEERS 24 WIND VENTILATOR

MOC of Vanes

Industrial HI grade Aluminium (HINDALCO MAKE H-14 8011 GRADE)

MOC of Top Plate

SS 304 (o.5mm) (AERODYNAMICAL)

MOC Bottom of Ring

SS 304 (0.5mm)

Weight of Ventilator

06 Kg.

Height of Ventilator

410mm + 5 mm

Center Width of Ventilator

735mm + 5 mm

Dia of Top Plate

500mm + 5 mm

Dia of Bottom Ring

600mm + 15 mm

Nos of Vanes

42 Nos Rolled Formed with lock washer

Thickness of Vanes

0.5mm

Nos of Bearing

02 Nos

Bearing Type

SKF - 6001 ZZ
Permanently Lubricated & Sealed

Rivets

Aluminum Alloy with LOCK Washer

We are providing double fan
Slope Adjustable Mukta Engineers 24 Wind Ventilator

MOC of Vanes

Industrial HI grade Aluminium (HINDALCO MAKE H-14 8011 GRADE)

MOC of Top Plate

SS 304 (o.5mm) (AERODYNAMICAL)

MOC Bottom of Ring

SS 304 (0.5mm)

ANGLE ADJUSTMENT RANGE

0 TO 17 DEGREE.

Weight of Ventilator

06 Kg.

Height of Ventilator

410mm + 5 mm

Center Width of Ventilator

735mm + 5 mm

Dia of Top Plate

500mm + 5 mm

Dia of Bottom Ring

600mm + 15 mm

Nos of Vanes

42 Nos Rolled Formed WITH LOCK WASHER

Thickness of Vanes

0.5mm

Nos of Bearing

02 Nos

Bearing Type

SKF - 6001 ZZ
Permanently Lubricated & Sealed

Rivets

Aluminum Alloy with LOCK Washer

Mukta Engineers 24 SS304 Wind Ventilator

MOC of Vanes

SS304

MOC of Top Plate

SS 304 (o.5mm)

MOC Bottom of Ring

SS 304 (0.5mm)

Weight of Ventilator

08 Kg.

Height of Ventilator

410mm + 5 mm

Center Width of Ventilator

735mm + 5 mm

Dia of Top Plate

500mm + 5 mm

Dia of Bottom Ring

600mm + 15 mm

Nos of Vanes

42 Nos Rolled Formed WITH LOCK WASHER

Thickness of Vanes

0.5 MM

Nos of Bearing

02 Nos

Bearing Type

SKF - 6001 ZZ Permanently Lubricated & Sealed

Rivets & SHAFT

SS 304
